Aim

To upload images to my portfolio which is constructed by hexo-based github.io.

Procedure

1 Install plugins

Install hexo-asset-image plugin

npm install hexo-asset-image --save

Install hexo-renderer-marked plugin

npm install hexo-renderer-marked --save

Edit _config.yml

1
2
3
4
post_asset_folder: true
marked:
 prependRoot: true
 postAsset: false

The “postAsset: false” is important due to the redundancy of generated absolute image path.

2 Insert image

With hexo-asset-image plugin installed we make a new post:

hexo new "project name"

A new directory is automatically generated

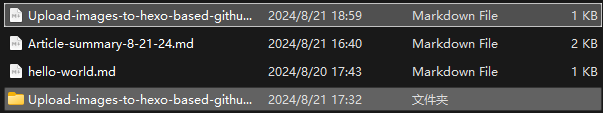

Illustration of new generated directory

Now we insert an image to the markdown: For instance:

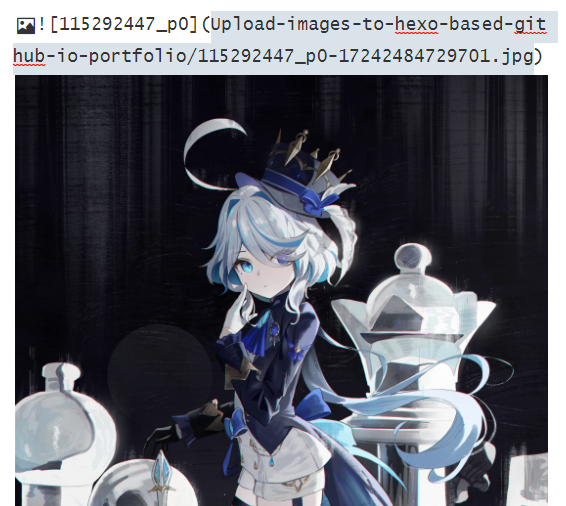

Screenshot of Furina

Then delete all strings before ‘/‘. Now the image is invisible in Typora.

Furina

3 Insert image with specific width and captions

We note that the Furina image above is too wide. To regulate the image width, previous command to insert image is replaced by following commands:

1
2
3
4
<figure>
    <img src="(your png/jpg path)" alt="title" width="60%"/> // or width="500" to specify the width
    <figcaption>your title</figcaption>
</figure>

Now the command is applied to upload a 60% Furina:

Furina
Furina

Then perform hexo clean hexo generate and hexo server to inspect the insertion of images.
